| 90Degree Reducing Buttweld Elbow Specification: | |||
| 形式/Type | 異徑，變徑，Reducing | ||
| 原材料/Raw Material | 無縫管、焊管（SS）、板焊。Seamless pipe, Welded pipe, Steel sheet. | ||
| 製作工藝/Manufacture Process | 擠壓、熱壓、冷加工、熱加工、焊接、熱處理 。Extrusion moulding, Hot Pressing, Cold-machining, Hot-machining, Welded, Heat treatment | ||
| 尺寸外徑/Outside Diameter | Seamless Elbow ( 1.1/2″～24″), ERW / Welded / Fabricated Elbow (12″～24″) | ||
| 壁厚壓力/Wall Thickness | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS | ||
| 彎頭角度/Product's Angle | 90° Long Radius Elbows, Long Radius Returns, Short Radius Elbows and Returns | ||
| 彎曲半徑/Bending Radius | R=1D – 10D, 15D, 20D | ||
| 增值服務/Value Added Services | 熱浸鍍鋅，環氧樹脂和FBE塗層，電拋光，噴砂，螺紋加工，焊接（Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering） | ||
| 製造標準/Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408, SH3409, JIS B2311/2220, DIN2617/2616/2615 | ||
| 90Degree Reducing Buttweld Elbow Material Grades: | |||
| 不鏽鋼/Stainless Steel | ASTM A403 WP304, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347 | ||
| 碳鋼/Carbon Steel | 20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 | ||
| 低溫鋼/Low Temperature Carbon Steel | 16Mn, ASTM A420 WPL3, A420 WPL6 | ||
| 合金鋼/Alloy Steel | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, WB36, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV | ||
| 雙相不鏽鋼鋼/Duplex Steel | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. S31254, 254SMO, S32750,904L | ||
| 鎳合金/Nickel Alloy Steel | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) | ||

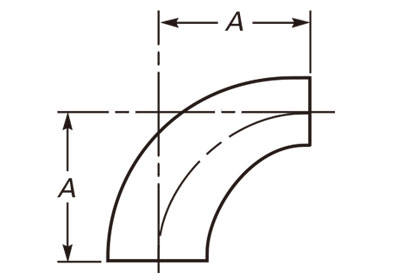

| 90Degree Reducing Buttweld Elbow Dimesions | |||
| Nominal | Outside Diameter | Center- | |
| Pipe | at Bevel | to-End, | |
| Size | A | ||
| (NPS) | Large End | Small End | |
| 2×1½ | 60.3 | 48.3 | 76 |
| 2×1¼ | 60.3 | 42.2 | 76 |
| 2×1 | 60.3 | 33.4 | 76 |
| 2½×2 | 73 | 60.3 | 95 |
| 2½×1½ | 73 | 48.3 | 95 |
| 2½×1¼ | 73 | 42.2 | 95 |
| 3×2½ | 88.9 | 73 | 114 |
| 3×2 | 88.9 | 60.3 | 114 |
| 3×1½ | 88.9 | 48.3 | 114 |
| 3½×3 | 101.6 | 88.9 | 133 |
| 3½×2½ | 101.6 | 73 | 133 |
| 3½×2 | 101.6 | 60.3 | 133 |
| 4×3½ | 114.3 | 101.6 | 152 |
| 4×3 | 114.3 | 88.9 | 152 |
| 4×2½ | 114.3 | 73 | 152 |
| 4×2 | 114.3 | 60.3 | 152 |
| 5×4 | 141.3 | 114.3 | 190 |
| 5×3½ | 141.3 | 101.6 | 190 |
| 5×3 | 141.3 | 88.9 | 190 |
| 5×2½ | 141.3 | 73 | 190 |
| 6×5 | 168.3 | 141.3 | 229 |
| 6×4 | 168.3 | 114.3 | 229 |
| 6×3½ | 168.3 | 101.6 | 229 |
| 6×3 | 168.3 | 88.9 | 229 |
| 8×6 | 219.1 | 168.3 | 305 |
| 8×5 | 219.1 | 141.3 | 305 |
| 8×4 | 219.1 | 114.3 | 305 |
| 10×8 | 273 | 219.1 | 381 |
| 10×6 | 273 | 168.3 | 381 |
| 10×5 | 273 | 141.3 | 381 |
| 12×10 | 323.8 | 273 | 457 |
| 12×8 | 323.8 | 219.1 | 457 |
| 12×6 | 323.8 | 168.3 | 457 |
| 14×12 | 355.6 | 323.8 | 533 |
| 14×10 | 355.6 | 273 | 533 |
| 14×8 | 355.6 | 219.1 | 533 |
| 16×14 | 406.4 | 355.6 | 610 |
| 16×12 | 406.4 | 323.8 | 610 |
| 16×10 | 406.4 | 273 | 610 |
| 18×16 | 457 | 406.4 | 686 |
| 18×14 | 457 | 355.6 | 686 |
| 18×12 | 457 | 323.8 | 686 |
| 18×10 | 457 | 273 | 686 |
| 20×18 | 508 | 457 | 762 |
| 20×16 | 508 | 406.4 | 762 |
| 20×14 | 508 | 355.6 | 762 |
| 20×12 | 508 | 323.8 | 762 |
| 20×10 | 508 | 273 | 762 |
| 24×22 | 610 | 559 | 914 |
| 24×20 | 610 | 508 | 914 |
| 24×18 | 610 | 457 | 914 |
| 24×16 | 610 | 406.4 | 914 |
| 24×14 | 610 | 355.6 | 914 |
| 24×12 | 610 | 323.8 | 914 |
| GENERAL NOTE: All dimensions are in millimeters. | |||
