| Buttweld Lateral Specification: | |||
| 形式/Type | 等徑斜三通、異徑斜三通 | ||
| Equal, Reducing | |||
| 原材料/Raw Material | 無縫管、焊管（SS）、板焊、圓鋼（鍛製高壓用）。Seamless pipe, Welded pipe, Steel sheet. Round bar（Foring High pressure） | ||
| 製作工藝/Manufacture Process | 擠壓、熱壓、冷加工、熱加工、焊接、熱處理 。Extrusion moulding, Hot Pressing, Cold-machining, Hot-machining, Welded, Heat treatment | ||
| 尺寸外徑/Outside Diameter | ERW / Welded / Fabricated Elbow (1/2″～28″) | ||
| 壁厚壓力/Wall Thickness | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS | ||
| 增值服務/Value Added Services | 熱浸鍍鋅，環氧樹脂和FBE塗層，電拋光，噴砂，螺紋加工，焊接（Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering） | ||
| 製造標準/Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408, SH3409, JIS B2311/2220, DIN2617/2616/2615 | ||
| Buttweld Lateral Material Grades: | |||
| 不鏽鋼/Stainless Steel | ASTM A403 WP304, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347 | ||
| 碳鋼/Carbon Steel | 20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 | ||
| 低溫鋼/Low Temperature Carbon Steel | 16Mn, ASTM A420 WPL3, A420 WPL6 | ||
| 合金鋼/Alloy Steel | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, WB36, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV | ||
| 雙相不鏽鋼鋼/Duplex Steel | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. S31254, 254SMO, S32750,904L | ||
| 鎳合金/Nickel Alloy Steel | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) | ||

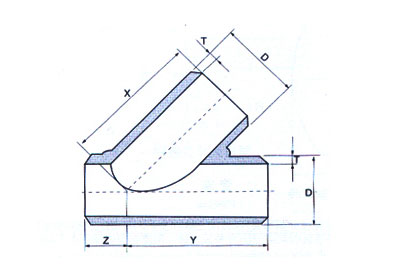

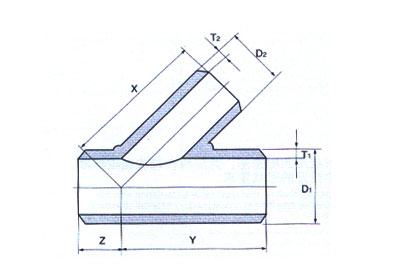

| Buttweld Lateral Dimensions | |||
| 公稱通徑 | 尺寸 | ||
| Nominal Pipe Size | Dimension | ||
| DN | NPS | X and Y | Z |
| 25 | 1 | 146 | 45 |
| 32 | 1.1/4 | 159 | 45 |
| 40 | 1.1/2 | 178 | 51 |
| 50 | 2 | 203 | 64 |
| 65 | 2.1/2 | 241 | 64 |
| 80 | 3 | 254 | 76 |
| 90 | 3.1/2 | 292 | 76 |
| 100 | 4 | 305 | 76 |
| 125 | 5 | 343 | 89 |
| 150 | 6 | 368 | 89 |
| 200 | 8 | 445 | 114 |
| 250 | 10 | 521 | 127 |
| 300 | 12 | 622 | 140 |
| 350 | 14 | 686 | 152 |
| 400 | 16 | 762 | 165 |
| 450 | 18 | 813 | 178 |
| 500 | 20 | 889 | 203 |
| 600 | 24 | 1029 | 229 |
| 650 | 26 | 1308 | 267 |
| 700 | 28 | 1442 | 286 |
| 750 | 30 | 1524 | 299 |
| 800 | 32 | 1626 | 311 |
| 850 | 34 | 1727 | 330 |
| 900 | 36 | 1829 | 350 |
| 同徑三通X=Y；異徑三通分別按公稱通徑對應的X、Y選取，不同標準的對焊管件的外徑和壁厚見外徑壁厚表。 | |||
